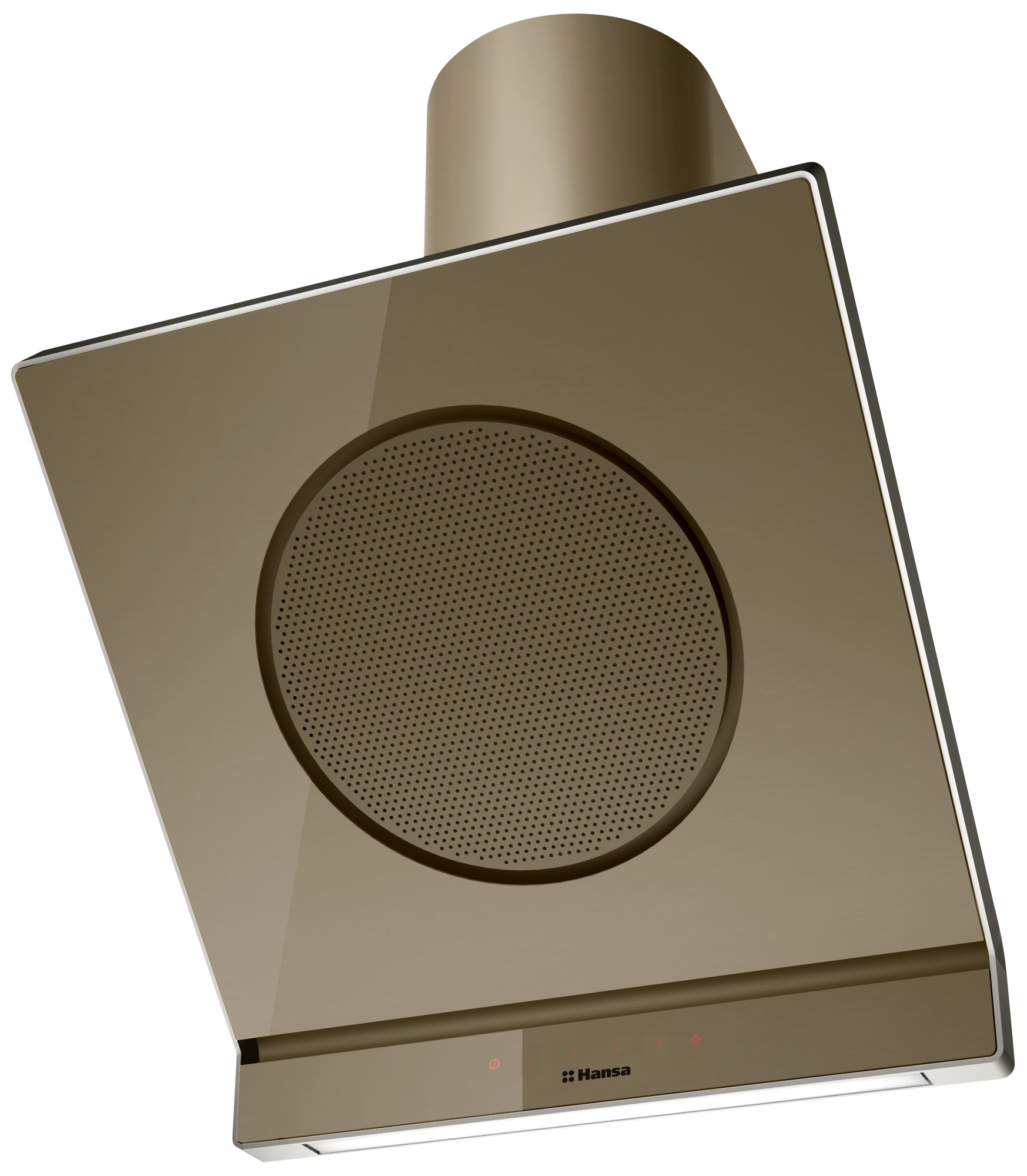

OKC 600 UMH
-
Karakteristike proizvoda
- Accessories -
- Air flaps Yes
- Delay Yes
- FrameOn Yes
- Maximum time of delay 10 '
- Panel - language version Pictograms
- Protection class of electric shock I_Class
- Type of work Extraction/Recirculation
-
Oprema
- Number of carbon filters 1
- Number of grease filters 1
- Number of layers in grease filter 5
- Number of speed 4
- Type of control Sensor
- Type of grease filters Aluminium frame
- Carbon filter type FWK 300
-
Tehnički podaci
- Air flow at 1 speed - extractor by EN 61591 260 m3/h
- Air flow at 2 speed - extractor by EN 61591 350 m3/h
- Air flow at 3 speed - extractor by EN 61591 438 m3/h
- Air flow at 4 speed - extractor by EN 61591 700 m3/h
- Air Flow at Intensive or Boost Setting [If Available] 700 m3/h
- Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 438 m3/h
- Air Flow at Minimum Speed in Normal Use 260 m3/h
- Air Flow Rate at Best Efficiency Point - Q BEP 434.8 m3/h
- Air Pressure at Best Efficiency Point P BEP 412 Pa
- Godišnja potrošnja energije 62.9 kWh
- Average Illumination of the Lighting System on the Cooking Surface - E middle 232 lux
- Control panel on one side/two sides One side
- Country of Origin on Rating Label Made in Poland
- Dimensions of grease filter 320 x 300
- Display color Red
- Distance from light cover to wall 5 mm
- Distance to electric hob 450 mm
- Distance to gas hob 650 mm
- Electric Power Input at Best Efficiency Point - W BEP 166.5 W
- Dinamična efikasnost 29.9
- Dinamična efikasnost A
- Grease Filtering Efficiency - GFE hood 71.9 %
- Efikasnost filtriranja masnoće D
- Intensive or Boost Setting Auto-Off time 5 '
- Internal/external motor Internal
- Osvetljenje 25.2 lux/W
- Klasa efikasnosti osvetljenja B
- Osvetljenje B
- Limitation of Exhaust Air - t limit 9 '
- Maximum Possible Air Flow 700 m3/h
- Motor unit rated power 260 W
- Motor type/model S-45
- Net depth 455 mm
- Net height max 1435 mm
- Net height min 1080 mm
- Neto težina 21.46 kg
- Net width 600 mm
- Nivo buke 50 dB
- Nivo buke 55 dB
- Nivo buke 60 dB
- Nivo buke 69 dB
- Nominal Power of the Lighting System - W L 9.2 W
- Number of motor units 1
- Number units of main lighting 1
- Prečnik cevi za vazduh 150 mm
- Type of plug or cable Euro plug
- Power Consumption in Standby Mode - Ps 0.25 W
- Power cabel length 170 cm
- Power rating 268.2 W
- Snaga napajanja 230V
- Power unit of main lighting 8.2 W
- Sound Power Emission at Intensive or Boost Setting [if available] 69 dB
- Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 60 dB
- Sound Power Emission at Minimum Speed Available in Normal Use 50 dB
- Nivo buke 60 dB
- Time Increase Factor - f 0.9
- Type of main lighting LED
