2 въглеродни филтри
Чиста и ефективна екстракция на въздуха благодарение на интегрираните въглеродни филтри. (* въглеродният филтър се продава отделно).
-
Осветление: халогенно
Нашите абсорбатори са оборудвани с халогенно осветление. Във всички модели включването на осветлението е независимо от действието на абсорбатора. Резултатът е удобство за потребителя.
i
Grafički materijali koji se nalaze u opisu proizvoda, kao što su slike i video material, prikazuju kako određena funkcija radi i ne moraju precizno predstavljati specifični model.

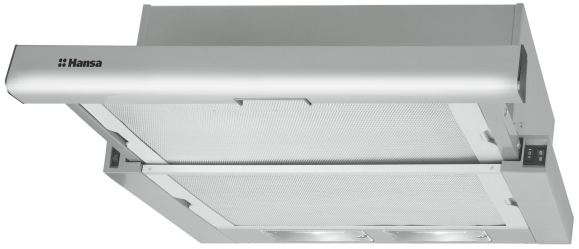

OTS615IH
-
Karakteristike proizvoda
- Accessories Back masking
- Air flaps Yes
- Auto Off Yes
- Automatic switch-on Yes
- Montage template Yes
- Panel - language version Pictograms
- Protection class of electric shock I_Class
- Type of work Extraction/Recirculation
-
Oprema
- Number of carbon filters 2
- Number of grease filters 2
- Number of layers in grease filter 3
- Number of speed 3
- Type of control Rocker switch
- Type of grease filters Aluminium frame
- Carbon filter type FWK 140
-
Tehnički podaci
- Air flow at 1 speed - extractor by EN 61591 180 m3/h
- Air flow at 2 speed - extractor by EN 61591 228 m3/h
- Air flow at 3 speed - extractor by EN 61591 240 m3/h
- Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 240 m3/h
- Air Flow at Minimum Speed in Normal Use 180 m3/h
- Air Flow Rate at Best Efficiency Point - Q BEP 159.6 m3/h
- Air Pressure at Best Efficiency Point P BEP 192 Pa
- Godišnja potrošnja energije 55.7 kWh
- Average Illumination of the Lighting System on the Cooking Surface - E middle 138 lux
- Control panel on one side/two sides One side
- Country of Origin on Rating Label Made in Turkey
- Dimensions of grease filter 476x130mm / 477x205mm
- Display color No
- Distance from light cover to wall 6 mm
- Distance to electric hob 450 mm
- Distance to gas hob 650 mm
- Electric Power Input at Best Efficiency Point - W BEP 87.3 W
- Dinamična efikasnost 9.8
- Dinamična efikasnost E
- Grease Filtering Efficiency - GFE hood 56.1 %
- Efikasnost filtriranja masnoće E
- Internal/external motor Internal
- Main lighting colour temperature [K] 2700
- Osvetljenje 21 lux/W
- Klasa efikasnosti osvetljenja B
- Osvetljenje B
- Maximum Possible Air Flow 240 m3/h
- Motor unit rated power 125 W
- Motor type/model SP25 (NEW)
- Net depth 310 mm
- Net height max 174 mm
- Net height min 174 mm
- Neto težina 5.7 kg
- Net width 600 mm
- Nivo buke 50 dB
- Nivo buke 53 dB
- Nivo buke 58 dB
- Nominal Power of the Lighting System - W L 6.4 W
- Number of motor units 1
- Number units of main lighting 2
- Prečnik cevi za vazduh 120 mm
- Type of plug or cable Euro plug
- Power cabel length 130 cm
- Power rating 131 W
- Snaga napajanja 220-240V
- Power unit of main lighting 3 W
- Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 58 dB
- Sound Power Emission at Minimum Speed Available in Normal Use 50 dB
- Nivo buke 58 dB
- Time Increase Factor - f 1.6
- Type of main lighting LED bulb E14
