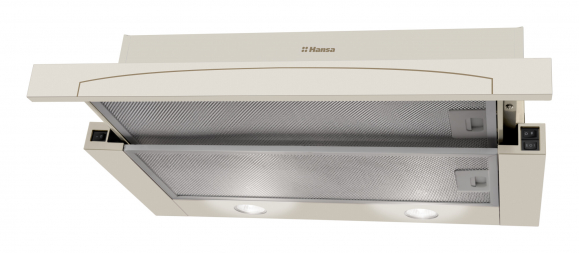

OTP6242RIH
-
FEATURES
- Accessories -
- Air flaps Yes
- Auto Off Yes
- Automatic switch-on Yes
- Panel - language version Pictograms
- Protection class of electric shock I_Class
- Type of work Extraction/Recirculation
-
Equipment
- Number of carbon filters 2
- Number of grease filters 2
- Number of layers in grease filter 5
- Number of speed 3
- Type of control Rocker switch
- Type of grease filters Aluminium frame
- Carbon filter type KF 17154
-
Technical data
- Frequency 50
- Air flow at 1 speed - extractor by EN 61591 228 m3/h
- Air flow at 2 speed - extractor by EN 61591 308 m3/h
- Air flow at 3 speed - extractor by EN 61591 389 m3/h
- Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 389 m3/h
- Air Flow at Minimum Speed in Normal Use 228 m3/h
- Air Flow Rate at Best Efficiency Point - Q BEP 224 m3/h
- Air Pressure at Best Efficiency Point P BEP 182.6 Pa
- Annual energy consumption 51.9 kWh
- Average Illumination of the Lighting System on the Cooking Surface - E middle 374.8 lux
- Container qty 40'HQ 1088
- Control panel on one side/two sides One side
- Country of Origin on Rating Label Made in PRC
- Dimensions of grease filter 483.5 X 202.5 mm
- Display color No
- Distance from light cover to wall 15 mm
- Distance to electric hob 450 mm
- Distance to gas hob 650 mm
- Electric Power Input at Best Efficiency Point - W BEP 83.4 W
- Fluid Dynamic Efficiency - FDE hood 13.6
- Fluid Dynamic Efficiency Class D
- Grease Filtering Efficiency - GFE hood 80 %
- Grease Filtering Efficiency Class C
- Internal/external motor Internal
- Main lighting colour temperature [K] 3000
- Lighting Efficiency - LE hood 44.1 lux/W
- Lighting Efficiency Class A
- Lighting Efficiency Class A
- Maximum Possible Air Flow 389 m3/h
- Motor unit rated power 120 W
- Motor type/model F series
- Net depth 300 mm
- Net height max 205 mm
- Net height min 205 mm
- Net weight 7.35 kg
- Net width 598 mm
- Noise level at 1 speed - extractor by EN 60704-2-13 58 dB
- Noise level at 2 speed - extractor by EN 60704-2-13 63 dB
- Noise level at 3 speed - extractor by EN 60704-2-13 65 dB
- Nominal Power of the Lighting System - W L 8.5 W
- Number of motor units 1
- Number units of main lighting 2
- Air exhaust diameter 120 mm
- Type of plug or cable Euro plug
- Power cabel length 120 cm
- Power rating 128 W
- Power Supply Voltage 230V
- Power unit of main lighting 4 W
- Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 65 dB
- Sound Power Emission at Minimum Speed Available in Normal Use 58 dB
- Noise level 65 dB
- Time Increase Factor - f 1.5
- Type of main lighting LED GU10
